Learning how to plumb a drain for a washing machine is one of those home improvement skills that pays for itself many times over. Whether you are setting up a new laundry space, relocating your washer, or troubleshooting a drainage problem, understanding every part of the system from the standpipe down to the trap puts you in control. This guide covers everything: tools, materials, code requirements, step-by-step installation, and long-term maintenance. By the end, you will know exactly what it takes to get the job done right.
How a Washing Machine Drain System Works (And Why It Matters)
Before touching a single pipe, it helps to understand what a properly functioning drain system looks like. A washing machine moves a high volume of water very quickly — often 15 to 30 gallons per cycle so every component in the drain path has to be sized and positioned correctly. If any part of the system is wrong, the result ranges from slow drainage to sewer gases entering your living space.
The Key Components: Standpipe, P-Trap, Drain Hose, and Vent
A standard washing machine drain system has four main parts working together:
- Standpipe: A vertical 2-inch pipe that receives water from the washer’s drain hose. It must be tall enough to prevent backflow into the machine.
- P-trap: A curved section of pipe positioned below the standpipe. It holds a small amount of water at all times, forming a seal that blocks sewer gases from traveling up through the drain.
- Drain hose: The flexible hose supplied with your washer. It carries discharged water from the pump to the standpipe.
- Vent pipe: Connected to the drain line, this allows air to enter the system so water flows freely. Without it, negative pressure builds up and drainage slows to a crawl or stops entirely.
How Water Moves Through the System
During a drain or spin cycle, the washer’s internal pump pushes water out through the drain hose at significant pressure. That water travels up and over the standpipe opening, falls into the standpipe, passes through the P-trap below, and exits into your home’s main drain line. The vent pipe simultaneously allows air to enter from above, keeping the pressure balanced so gravity can pull water through smoothly. Think of it like a straw: if you block the top of a straw with your finger, liquid inside cannot fall out. The vent pipe is what keeps your “straw” open.
What Happens When Any Component Fails
Each component failure produces a specific symptom. A clogged standpipe causes water to back up and overflow onto the floor. A dry or missing P-trap allows sewer gases — including hydrogen sulfide — to enter your laundry area. A blocked or missing vent creates gurgling sounds in nearby drains and significantly slows drainage. A drain hose that is inserted too deep into the standpipe can cause continuous siphoning, draining the machine even when it is mid-cycle. Knowing these cause-and-effect relationships makes both installation and troubleshooting much faster.
Tools and Materials You Will Need Before You Start
Gathering everything before you begin saves trips to the hardware store mid-job and reduces the chance of leaving the system partially installed. The materials list below covers a standard installation using a new standpipe connected to an existing home drain line.
Tools List (Pipe Cutter, Wrench, Level, Drill, and More)
Have these tools on hand before starting:
- Pipe cutter or hacksaw for trimming PVC standpipe and drain pipe to length
- Adjustable wrench for tightening supply connections and hose clamps
- Screwdriver (flathead and Phillips) for securing brackets, clamps, and washer box covers
- Level to confirm your standpipe is plumb and your drain slope is correct
- Pencil and measuring tape for marking pipe cuts and checking heights
- Utility knife or deburring tool to clean up cut pipe edges before cementing
- Hammer drill with carbide bit required for mounting standpipe brackets into masonry or concrete walls
- Bucket and towels to manage any water left in existing lines during the switchover
Materials List (PVC Pipe, P-Trap, Hose Clamps, AAV, and More)
For most installations you will need:
- 2-inch Schedule 40 PVC pipe for the standpipe and horizontal drain run
- 2-inch PVC P-trap the curved fitting that holds water and blocks sewer gas
- PVC primer and solvent cement for permanent, watertight connections between fittings
- Pipe brackets and wall anchors to secure the standpipe to the wall
- Drain hose clamp or zip tie to secure the washer drain hose in place
- Air admittance valve (AAV) an alternative to a traditional vent pipe where code permits
- Teflon (plumber’s) tape for threaded connections on supply valves
- 90-degree and 45-degree PVC elbows and couplings – as needed for your specific layout
Choosing the Right Washer Hoses and Supply Valves
The supply side of the installation matters as much as the drain side. Standard black rubber washer hoses are prone to blistering and sudden failure often causing significant water damage when they go. For a durable installation, choose stainless-steel braided hoses instead. They resist pressure spikes and last far longer.
For shutoff valves, avoid round-handled valves, which are notorious for corroding in the open position and becoming impossible to close in an emergency. Lever-handle valves are a much better choice. The best option is a washer box with a single lever that shuts off both hot and cold simultaneously, combined with anti-shock valves that absorb the water hammer caused when the washer’s solenoid snaps shut mid-fill.
Warning Signs Your Washing Machine Drain Is Already Failing
Before investing time in a new installation or upgrade, it is worth diagnosing whether your existing drain system is already in trouble. Many drain problems are gradual they start as minor annoyances and escalate into water damage or mold if left unaddressed.
Slow Drainage, Backups, and Gurgling Sounds
If your washing machine takes longer than usual to drain, or if water remains in the drum at the end of a cycle, something is restricting flow. The most common culprits are a clogged drain hose, a blocked standpipe, or a compromised vent. Gurgling sounds coming from a nearby floor drain or sink during your wash cycle are a classic sign of a venting problem air is being pulled through the nearest available opening (a neighboring trap) rather than entering properly through the vent.
Leaks, Musty Smells, and Water Pooling
Visible water around the base of the standpipe or behind the machine usually indicates either a loose drain hose connection, a cracked fitting, or a drain hose that has popped out of the standpipe during a high-volume discharge. A persistent musty or sewage-like smell near the washer points to a failing P-trap either it has dried out (from infrequent use), was installed incorrectly, or the seal has been broken by a venting problem. Both situations require immediate attention; sewer gas contains harmful compounds and should never be allowed to accumulate indoors.
When to Fix It Yourself vs. Call a Plumber
Straightforward tasks cleaning a drain hose, re-securing a loose standpipe, replacing a worn hose clamp are well within DIY territory for most homeowners. However, if the problem involves cutting into a main drain line, installing new venting, or bringing a non-compliant system up to code, a licensed plumber is the right call. You should also contact a professional if the system requires a permit, if you are working in a basement or second-floor installation, or if your home has older cast-iron or galvanized drain lines that need special handling.
How to Plumb a Washing Machine Drain: Step-by-Step
The following steps cover a complete standpipe-and-trap installation connected to an existing home drain line. If you are simply replacing an existing setup, you can skip the planning and rough-in steps and jump to Step 3.
Step 1 Plan Your Layout and Choose the Right Location
Start by identifying where the washer will sit and mapping the shortest, most direct path from the standpipe to the main drain line. The ideal location is within a few feet of an existing drain line to minimize the length of horizontal pipe run. You also want to be near hot and cold supply lines and a properly grounded electrical outlet.
At this stage, decide whether you will connect to an existing drain line by cutting in a new fitting, or whether there is already a washing machine drain stub-out to work with. Sketch your layout, noting the direction of the drain slope, where the vent will tie in or where the AAV will sit, and how the standpipe will be secured to the wall.
Step 2 – Shut Off Water and Prepare the Area
Turn off the water supply at the nearest shutoff valve, or at the main if needed. If you are replacing an old washer installation, disconnect the drain hose and supply lines, and have a bucket ready to catch residual water in the hoses. Clear the work area completely and sweep or vacuum the floor PVC shavings and dust from cutting are a slip hazard. If you are working in a finished wall, you may need to cut an access panel or work through the back wall of a cabinet.
Step 3 – Install the Standpipe and P-Trap
Cut your 2-inch PVC standpipe to the correct height between 18 and 30 inches measured from the top of the trap to the top of the pipe opening. Dry-fit all pieces first before applying primer and cement. Apply PVC primer to both the pipe end and the fitting socket, then apply solvent cement and push together with a slight twist, holding for 30 seconds. The cement bonds almost instantly, so make sure your alignment is correct before joining.
Mount the standpipe bracket to the wall using appropriate fasteners, masonry screws and a hammer drill for concrete or block walls, wood screws for stud walls. The P-trap sits below the standpipe and connects to the horizontal drain run leading to the main line. Ensure the trap is positioned above the floor but below the standpipe inlet.
Step 4 – Connect to the Main Drain Line at the Correct Slope
The horizontal drain pipe connecting the trap to the main drain line must maintain a continuous downward slope of one-quarter inch per foot. More slope than this can cause solids to be left behind as water rushes past too quickly; less slope means water may sit and cause buildup. Use your level throughout this process.
To connect to an existing drain pipe, cut into the line using a hacksaw or reciprocating saw, deburr the edges, and glue in a sanitary tee or wye fitting. The branch of the fitting should point in the direction of flow. This step sometimes requires temporarily removing a section of pipe to give yourself room to work and plan the fitting sequence before cutting anything permanently.
Step 5 – Install the Vent Pipe or Air Admittance Valve
Every washing machine drain system must be vented. The most reliable option is tying a vent pipe into your home’s existing vent stack; this requires running a pipe through the wall and up through the roof or tying into an existing vent branch. This is often the most labor-intensive part of the job and the most commonly skipped, which is also why venting issues are the leading cause of washing machine drain problems.
In jurisdictions where they are permitted, an air admittance valve (AAV) offers a code-compliant alternative. An AAV is a one-way mechanical valve installed on the drain line above the trap weir. It opens under negative pressure to admit air and closes under neutral or positive pressure to prevent sewer gas from escaping. AAVs are not permitted everywhere check your local code before relying on one.

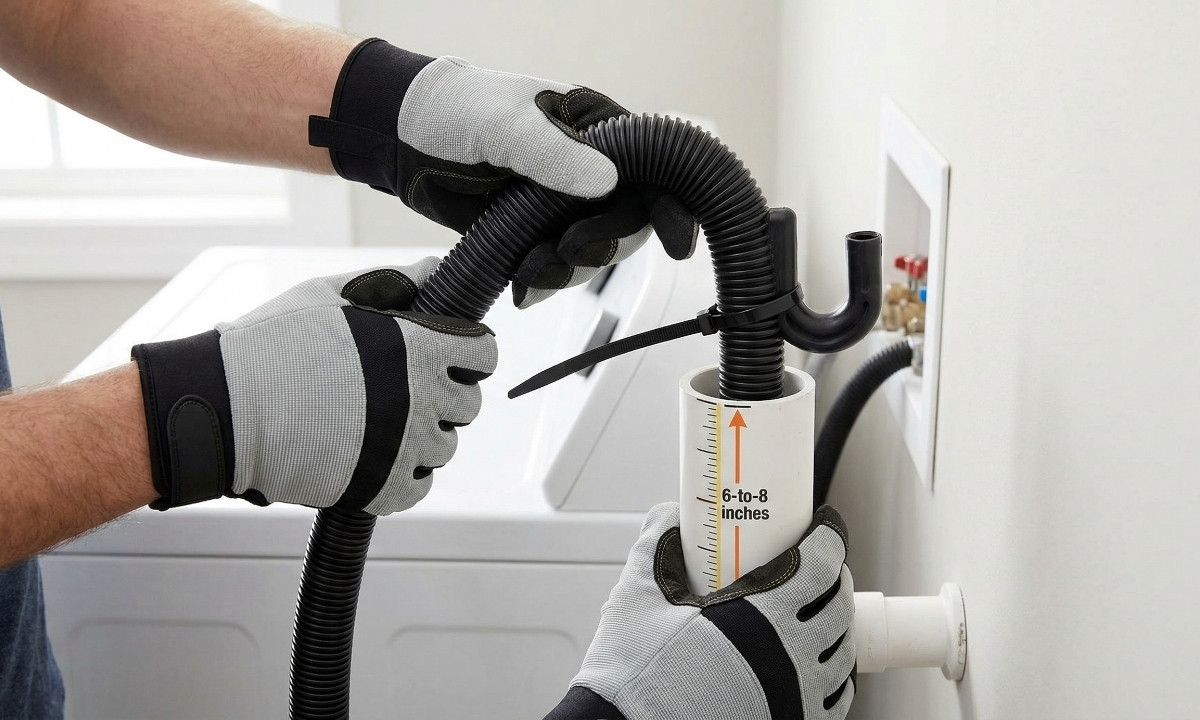

Step 6 – Attach and Secure the Drain Hose
Feed the washer’s drain hose over to the standpipe. Insert the end of the hose into the standpipe opening to a depth of 6 to 8 inches no more. Inserting it too deeply creates an airtight seal that can siphon water out of the machine continuously. Too shallow and the hose may vibrate out during a spin cycle discharge. Secure the hose to the standpipe with a zip tie or hose strap to prevent it from shifting, but do not create an airtight connection.
If using a washer box, route the drain hose to the drain port on the box and insert it accordingly. Make sure the hose is not kinked anywhere along its path; a bend in the hose is one of the most overlooked causes of poor drainage.
Step 7 – Test the System and Check for Leaks
Turn the water supply back on and run a full wash and spin cycle. Stay in the laundry room and watch every connection point during the drain phase; this is when water pressure in the drain line is at its peak. Check the standpipe connection, the P-trap joints, the horizontal drain run, and the area around the main drain tie-in. Even a slow drip at a cemented joint means the connection needs to be redone.
Also verify correct hot and cold orientation: set the machine to a cold-only wash and confirm that only cold water enters the tub. If the supply hoses were swapped, you will get hot water during a cold cycle, damaging delicate fabrics and wasting energy.
Plumbing Code Requirements You Must Know
Plumbing codes exist to protect both your home and public health. Cutting corners on code compliance can result in failed inspections, fines, and drainage problems that are expensive to fix after walls are closed up. The following requirements apply to most jurisdictions in the United States, but always verify against your local code.
Standpipe Height, Pipe Diameter, and Horizontal Run Rules
The standard requirements are:
- Standpipe diameter: 2 inches minimum this is required by virtually all U.S. plumbing codes and is sized to handle a washing machine’s discharge rate without backup.
- Standpipe height: 18 to 30 inches from the trap weir to the top of the pipe opening, per the Uniform Plumbing Code. Some local codes allow up to 36 inches — check your jurisdiction.
- Horizontal run after trap: At least 4 inches equal to twice the pipe diameter. This minimum run is required to prevent the P-trap from functioning as an S-trap (more on this below).
- Drain slope: One-quarter inch drop per horizontal foot of pipe.
P-Trap vs. S-Trap: Why the Difference Is a Code Violation
A P-trap has a horizontal outlet that connects to a vented drain line. An S-trap has a downward outlet that connects directly to a vertical drain. The problem with an S-trap is that when water drains, it accelerates through the trap and creates a siphon that pulls the standing water in the trap along with it leaving the trap empty and the path to the sewer wide open.
S-traps have been prohibited by plumbing codes for decades, but they are still found in older homes. The way to avoid inadvertently creating one is to ensure there is at least 4 inches of horizontal pipe between the trap weir and any change in direction, and that the drain is properly vented. If you have an existing S-trap under your washer drain, it needs to be corrected.
Venting Requirements and Where AAVs Are (and Are Not) Allowed
The International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) both require all trap-sealed drains to be vented. Traditional through-the-roof venting is universally accepted. AAVs are permitted under the IPC in most circumstances but are restricted under the UPC to specific applications and are outright prohibited in some local codes that have adopted additional restrictions.
Before installing an AAV, check whether your area has adopted the IPC or UPC as its base code, and then check for local amendments. Some jurisdictions require AAVs to be accessible for inspection and maintenance. Never install an AAV in an enclosed, unventilated space; it needs access to the air in the room to function.
When You Need a Permit and How to Find Local Codes
Generally, any work that involves cutting into an existing drain or vent line, adding new drain connections, or significantly altering the plumbing layout requires a permit. Replacing an existing standpipe or swapping a drain hose typically does not. When in doubt, call your local building and permits office. A quick phone call can save you from a costly redo if an inspector requires you to open a finished wall.
Your local codes are usually available through your city or county website, or through your state’s plumbing board. The ICC (International Code Council) also publishes the IPC, which most states base their codes on.
Common Mistakes That Cause Drain Problems (And How to Avoid Them)
Even experienced DIYers make these errors. Catching them before you button up the walls can save significant rework time.
Wrong Pipe Size or Incorrect Slope
Using 1.5-inch pipe instead of 2-inch for a washing machine drain is one of the most common mistakes, especially when someone tries to tap into an existing utility sink drain. A 1.5-inch pipe cannot handle the volume or velocity of a washing machine discharge and will back up regularly. Always use a 2-inch minimum for the standpipe and all pipe downstream of it until it joins a larger main line.
Incorrect slope is harder to spot but just as damaging. A flat or reverse-sloped horizontal run will pool water, allow debris to accumulate, and eventually block completely. Always check the slope with a level during installation, not after.
Poor or Missing Venting
This is the single most common source of ongoing washing machine drain problems. Without proper venting, negative pressure builds up behind the draining water and slows it down like trying to pour liquid from a bottle without a vent hole. In severe cases, that negative pressure will siphon water right out of the P-trap. If your washer drains slowly and you have already cleared the hose and standpipe, poor venting is almost certainly the culprit.
Inserting the Drain Hose Too Deep or Too Shallow
The drain hose should extend 6 to 8 inches into the standpipe opening not more, not less. Too deep, and you create a sealed connection that causes continuous siphoning. Too shallow, and the hose vibrates free during the high-pressure discharge of a spin cycle, dumping water on your floor. The hose should fit snugly but should not be taped, caulked, or otherwise sealed into the standpipe opening.
Skipping the Test Cycle After Installation
It is tempting to consider the job done once all the connections are made and the machine is back in place. But the only way to verify the system works under real conditions is to run a full cycle and observe. Many leaks only appear under the flow rate and pressure of an actual drain cycle a slow drip you might miss during a visual check. Run at least one complete cycle, stay nearby, and check every joint.
Special Installations: Draining in Non-Standard Situations
Not every washing machine installation is a simple standpipe in a dedicated laundry room. Many homeowners deal with non-standard configurations that add complexity and sometimes require additional planning, materials, or professional help.
Draining Into a Laundry Sink or Utility Sink
In older homes or tight spaces, it is common practice to have the washer drain hose empty into a utility or laundry sink rather than a dedicated standpipe. This is acceptable under most codes, but only if the sink itself is properly vented and connected to the drain system, and only if the sink’s drain is large enough to handle the washer’s discharge rate without overflowing. The drain hose should be secured to the sink with a hook or bracket so it cannot fall out mid-cycle. Do not permanently attach it the hose needs to sit in the drain opening, not seal it.
Installing in a Basement, Garage, or Second Floor
Each of these locations introduces unique challenges. In a basement, the washer drain is often below the main sewer line, which means gravity drainage is not possible without a sewage ejector pump or a laundry pump. In a garage, the drain line may need to run a longer horizontal distance to reach the main stack, which demands careful attention to slope calculations. On a second floor, the drain line must pass through the subfloor and connect to a stack or branch drain below; this often requires cutting into framing and may need structural consideration if floor joists need to be notched or drilled. In all three cases, the vent path also becomes more complex and usually requires a plumber’s input.
Relocating Your Washer and Dryer to a New Space
Moving a washer and dryer to a different room, especially a new wing, a finished basement, or a second-floor addition is a significant plumbing project. You will need to run new hot and cold supply lines, install new shutoff valves, build a new drain standpipe with trap and vent, and ensure the new location has a properly grounded and dedicated electrical circuit. The dryer also needs either a new external vent duct or a condensing dryer if venting through an exterior wall is not practical. Because this work almost always involves cutting into existing supply and drain lines, it typically requires a permit and should be done by or in consultation with a licensed plumber.
Freeze Protection for Laundry Rooms in Unheated Spaces
This topic is absent from most washing machine drain guides, but it is critically important for anyone installing a washer in a garage, unheated utility room, or exterior basement. Water left sitting in a drain trap or supply line can freeze and crack PVC fittings, split supply hoses, and damage the washer pump. To protect against this, insulate exposed supply pipes with foam pipe insulation rated for the expected low temperatures in your area. For drain lines in very cold spaces, consider installing a heat tape rated for plumbing use and wrapping it around the P-trap and standpipe. If the space will be unoccupied and unheated for extended periods in winter, you should drain and winterize the supply lines entirely, and add a cup of RV antifreeze to the P-trap to prevent it from freezing solid.
Maintenance Tips to Keep Your Washer Drain Flowing Freely
A properly installed drain system is low-maintenance, but it is not zero-maintenance. Lint, detergent residue, and mineral deposits gradually accumulate in the drain hose, standpipe, and trap over time. A simple monthly routine keeps these from becoming a problem.
Monthly Cleaning Routine (Baking Soda, Vinegar, and Hot Water Flush)
Once a month, pour one cup of baking soda directly into the standpipe opening, followed immediately by one cup of white vinegar. The resulting reaction helps break up soap scum and light debris on the pipe walls. Let it sit for 15 minutes, then flush with a full kettle of the hottest water you can boil this carries the loosened material down through the trap and into the main drain line. This routine is inexpensive, safe for PVC, and effective at preventing the gradual buildup that leads to slow drainage and odors.
Also check the drain hose monthly for any visible kinks, cracks, or areas where the hose may have shifted in the standpipe. A hose that has worked its way too deep or too shallow will cause problems gradually catching it early is much easier than dealing with a flooded laundry room.
How to Clear a Clogged Drain Hose or Standpipe
If the baking soda flush does not restore normal drainage, the next step is physical cleaning. Disconnect the drain hose from the washer and the standpipe and run a garden hose or sink sprayer through it to flush any accumulated lint or debris. For the standpipe itself, a flexible plumber’s brush or a drain auger (drain snake) will dislodge stubborn clogs. Insert the snake slowly and rotate it as you push, do not force it aggressively, as this can crack brittle PVC.
If the clog is deeper in the drain line rather than in the standpipe, you may need to snake through a cleanout fitting, or call a plumber with a power auger if the blockage is significant.
Signs of Trouble to Watch For Between Deep Cleans
Between monthly cleaning sessions, keep an eye out for these early warning signs:
- Water draining more slowly than usual, even after a cleaning cycle
- Any dampness or discoloration on the floor or wall around the standpipe
- A faint sewer or mildew smell near the washer especially after a period of non-use
- Gurgling sounds from the standpipe, floor drain, or nearby sink during a wash cycle
- The machine stopping mid-cycle with an error code related to drainage
Catching any of these early prevents a minor maintenance issue from becoming a major repair.
Frequently Asked Questions
What size pipe does a washing machine drain need?
A 2-inch diameter pipe is the standard for washing machine drain lines and is required by most U.S. plumbing codes. This applies to both the standpipe and all horizontal drain pipe running from the trap to the main drain line. Using a smaller diameter pipe such as 1.5-inch, which is common under utility sinks will not handle the flow rate of a washing machine and will lead to frequent backups.
How high should a washing machine standpipe be?
The standpipe should be between 18 and 30 inches tall, measured from the weir (water level) inside the P-trap to the top of the standpipe opening. This range is specified by the Uniform Plumbing Code. Some local codes and manufacturers allow heights up to 36 inches. The minimum height prevents the washer pump from siphoning water back out of the standpipe during the wash cycle.
Do I need a vent for a washing machine drain?
Yes, without exception. Every P-trap-sealed drain must be vented to maintain proper air pressure in the drain line. Without a vent, drainage is slow, gurgling is common, and the trap can siphon dry leaving your laundry area exposed to sewer gas. Venting can be accomplished via a traditional roof vent pipe or, where permitted by local code, an air admittance valve (AAV). Never omit the vent and assume drainage will work on its own.
Can I drain my washing machine into a utility sink?
Yes, in most cases. The utility sink must be properly vented, its drain must be large enough to accept the washer’s discharge rate without overflowing, and the drain hose must be secured so it cannot fall out during a cycle. It is also important that the connection is not airtight the hose should sit in the drain opening loosely, not be sealed into it. Check your local plumbing code to confirm this arrangement is acceptable in your jurisdiction.
Can I plumb a washing machine drain myself, or do I need a plumber?
Many parts of the installation are well within the capabilities of a competent DIYer cutting standpipe to length, gluing PVC fittings, connecting the drain hose, and replacing a trap. However, cutting into a main drain line, running a new vent pipe, or dealing with complex routing in a basement or multi-floor home is best handled by a licensed plumber. When in doubt, at minimum having a professional review your plan before you start an hour of their time costs far less than fixing a code violation behind finished walls.
Conclusion
Quick-Reference Specs Recap
Before you begin any installation or repair, keep these essential specifications on hand:
| Specification | Required Value |
| Standpipe diameter | 2 inches (minimum) |
| Standpipe height | 18 to 30 inches (from trap weir to pipe opening) |
| Drain hose insertion depth | 6 to 8 inches into standpipe |
| Horizontal drain slope | 1/4 inch drop per foot of run |
| Minimum horizontal run after trap | 4 inches (twice pipe diameter) |
| Pipe material | Schedule 40 PVC (standard) |
| Supply hose recommendation | Stainless-steel braided (not rubber) |
Next Steps: DIY Checklist or When to Call a Professional
If you are moving forward with a DIY installation, use this checklist to make sure nothing is missed:
- Plan your layout and confirm proximity to supply lines, drain, and electrical outlet
- Gather all tools and materials before starting
- Shut off water and prepare the work area
- Install standpipe and P-trap using 2-inch Schedule 40 PVC
- Connect to the main drain line at the correct slope (1/4 inch per foot)
- Install vent pipe or confirm AAV is permitted and correctly placed
- Attach drain hose 6 to 8 inches into standpipe and secure with a strap
- Run a full test cycle and check every joint for leaks
- Set up a monthly maintenance routine
If your project involves any of the following, contact a licensed plumber: cutting into a main drain or vent stack, installing in a basement where the drain is below the sewer line, running new supply lines, working in an unheated space, or navigating a local code you are unsure about.
Plumbing a washing machine drain correctly the first time saves money, prevents water damage, and gives you confidence every time the spin cycle kicks in. Take your time, follow the specs, and do not skip the test cycle and your laundry setup will serve you reliably for years to come.
